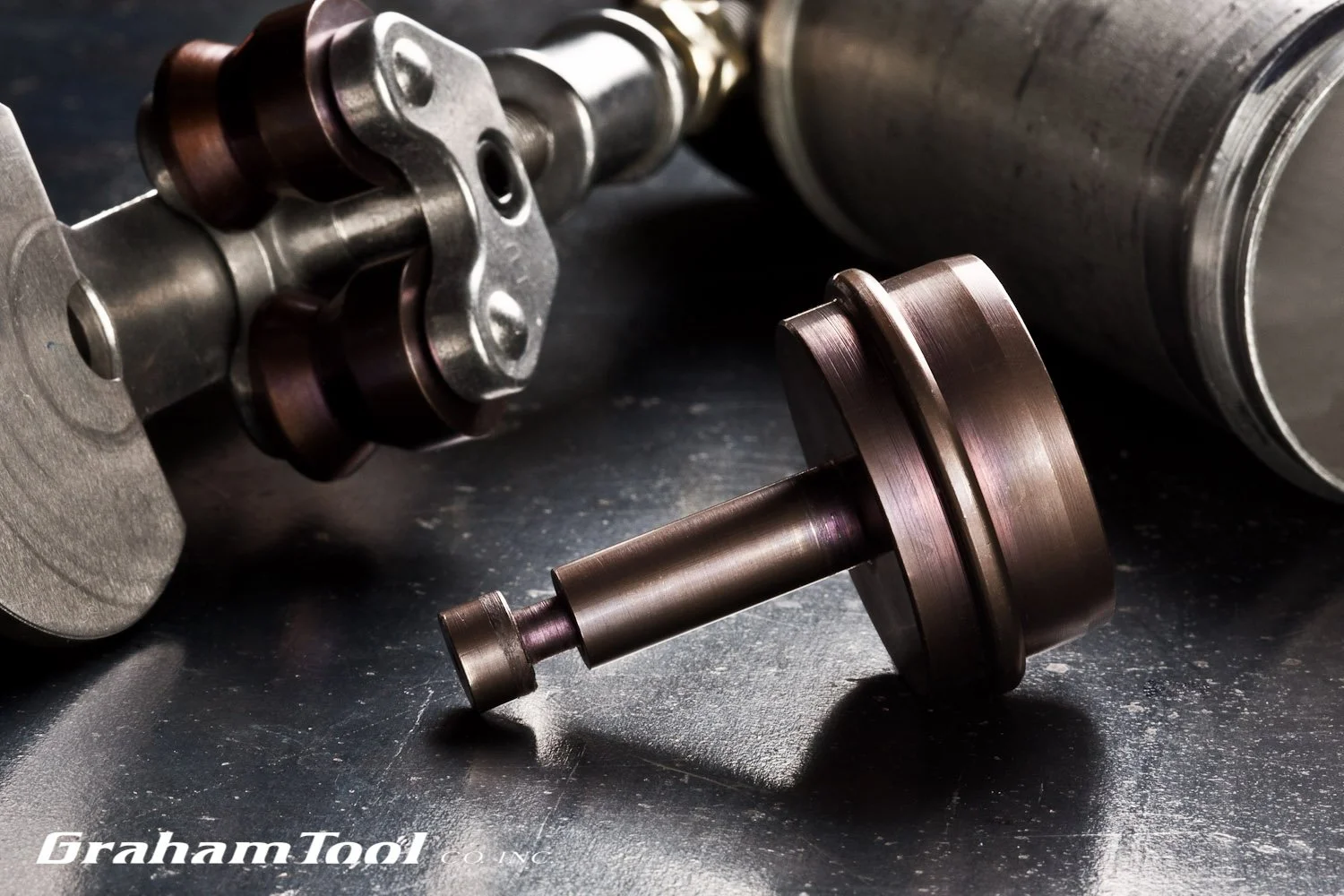

Designed in the USA during WWII for aircraft applications. This is a proven tool with a long history. Available to the public by popular demand. Manufactured in California using 100% USA materials. Useful to form a bead on rigid tubing for hose and hose clamp applications. Works on 3/4", 1”, and 1-1/4” O.D. tubing. Can be used on aluminum, copper, steel, and stainless steel. Best used when the tube is not removed from the vehicle. However, includes a medium polyurethane v-block for bench vise operations.

Other sizes are available by special request including 1-1/2” OD to 2”. Larger than 2” can be engineered for special applications. Contact Brian for more details.

Our customers include Boeing, Los Alamos National Laboratory, US Marines, US Army, Sandia National Laboratories, United Launch, Spawar, and SpaceX.

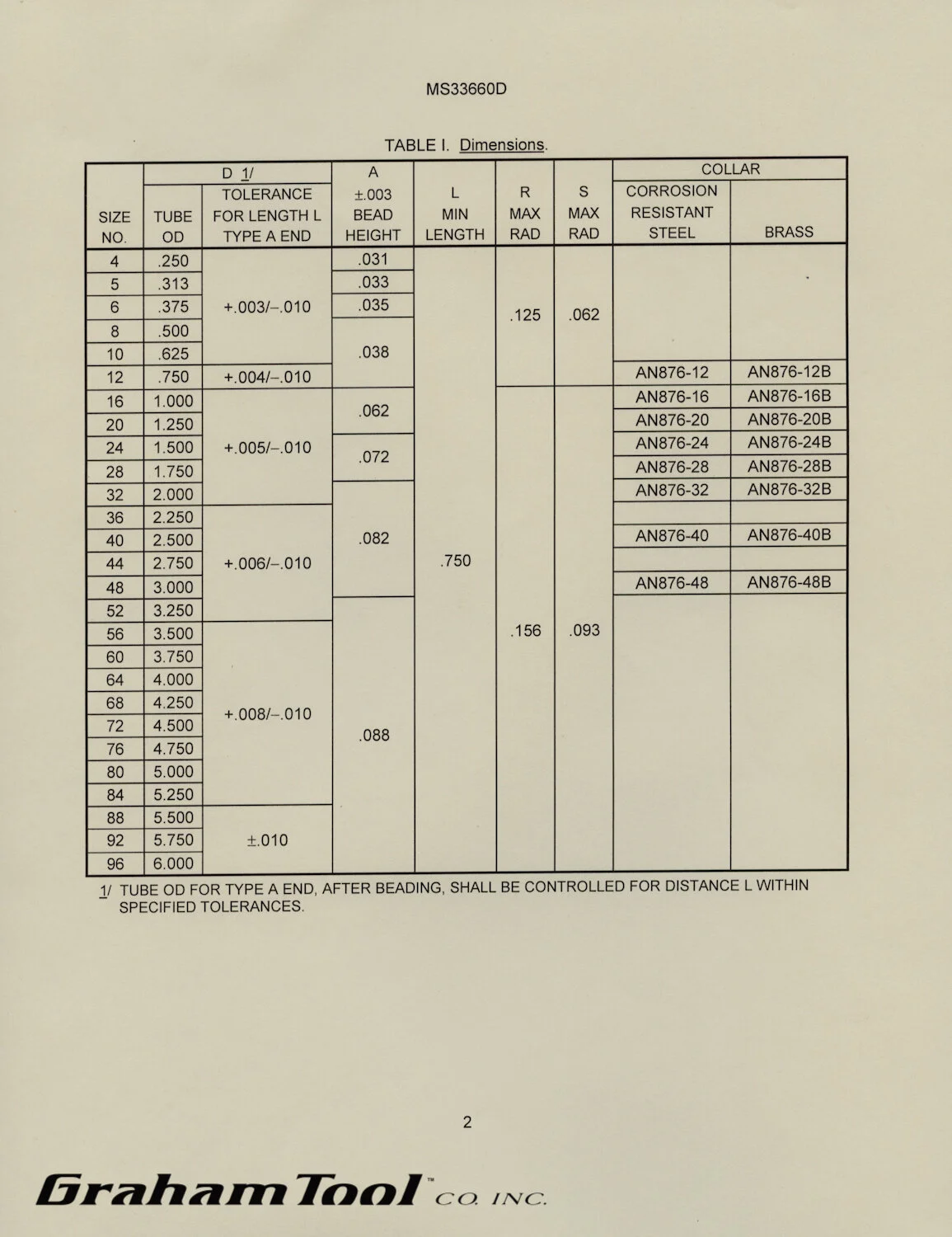

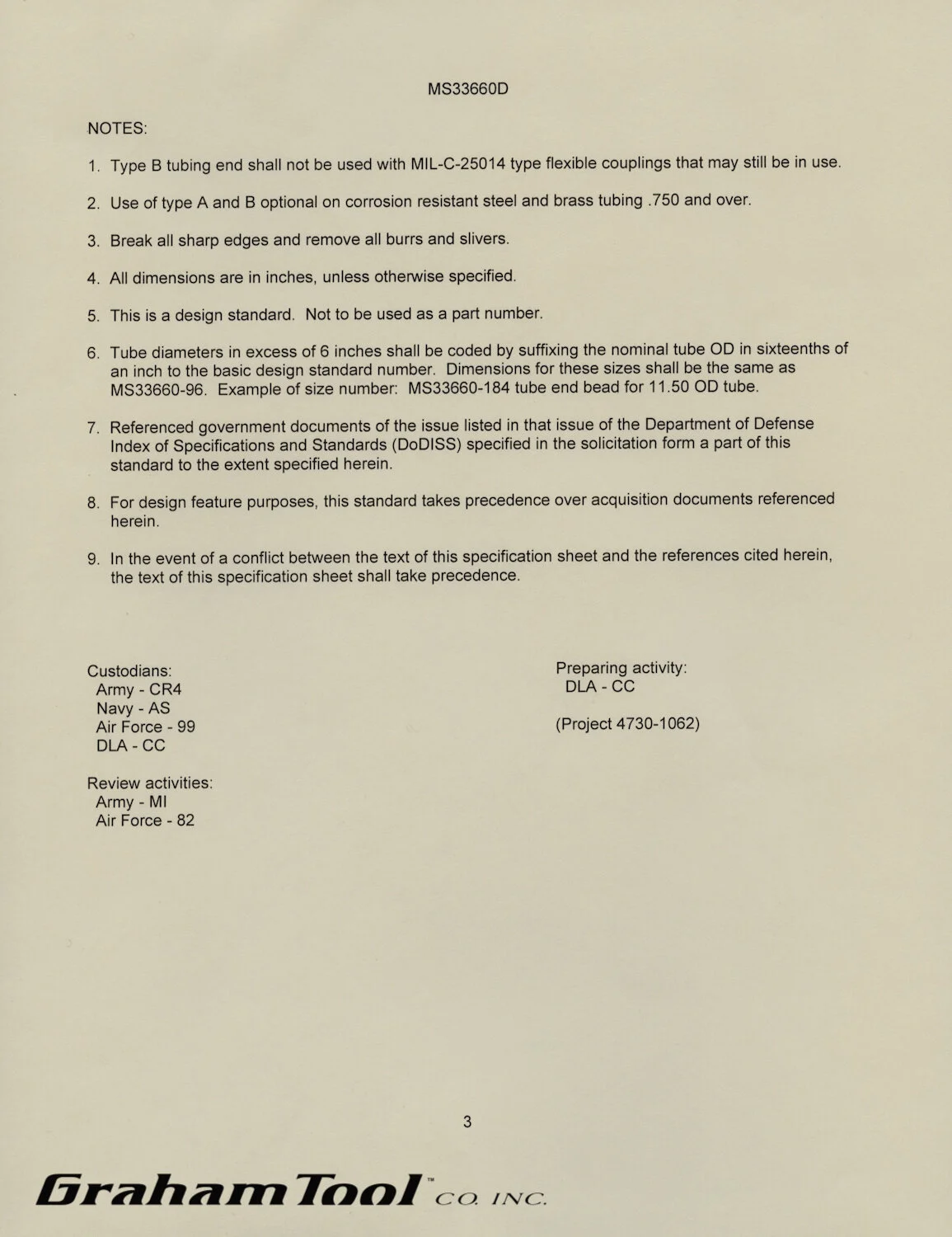

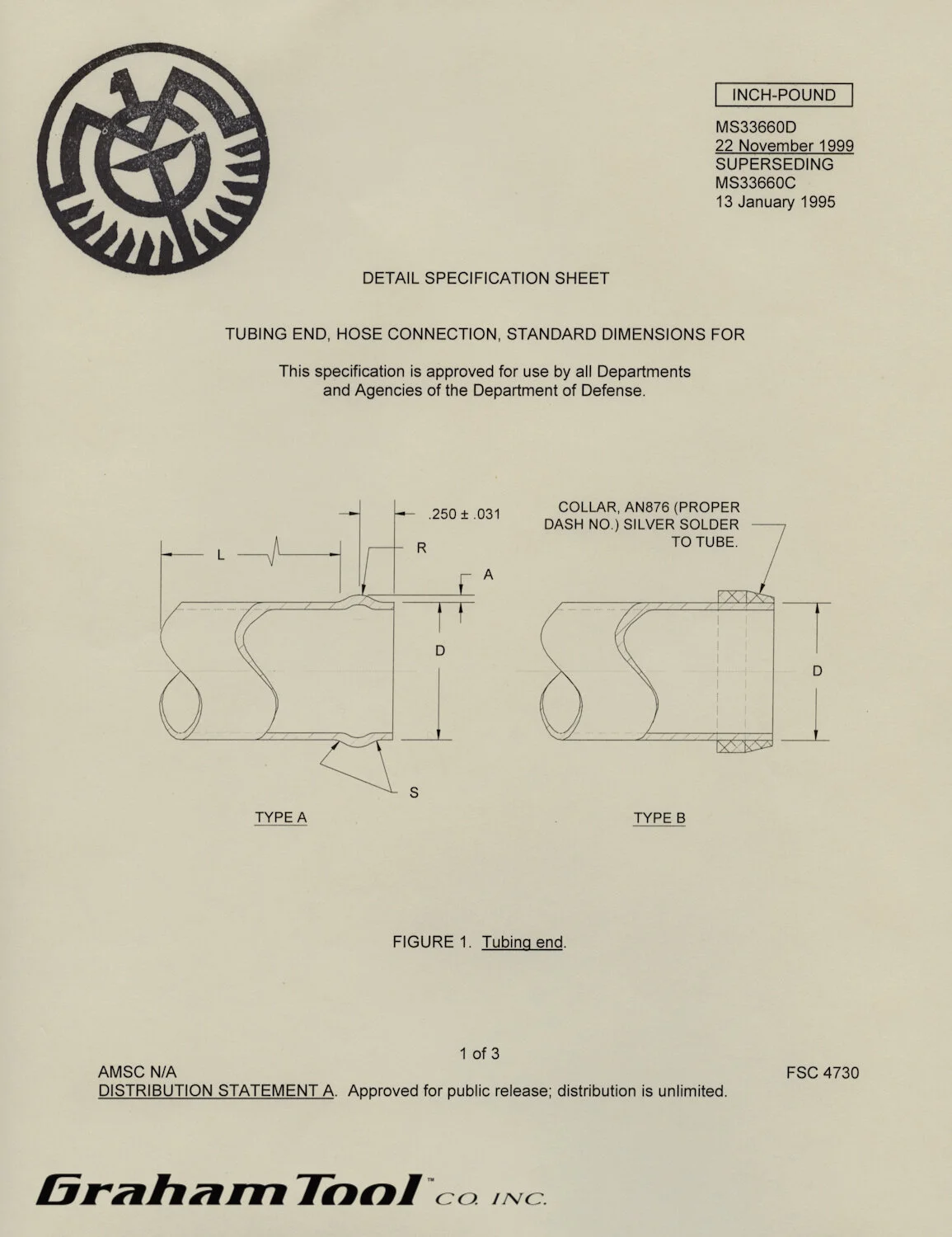

Creates a bead per mil-spec MS33660D (see photos) and SAE Aerospace AS5131.

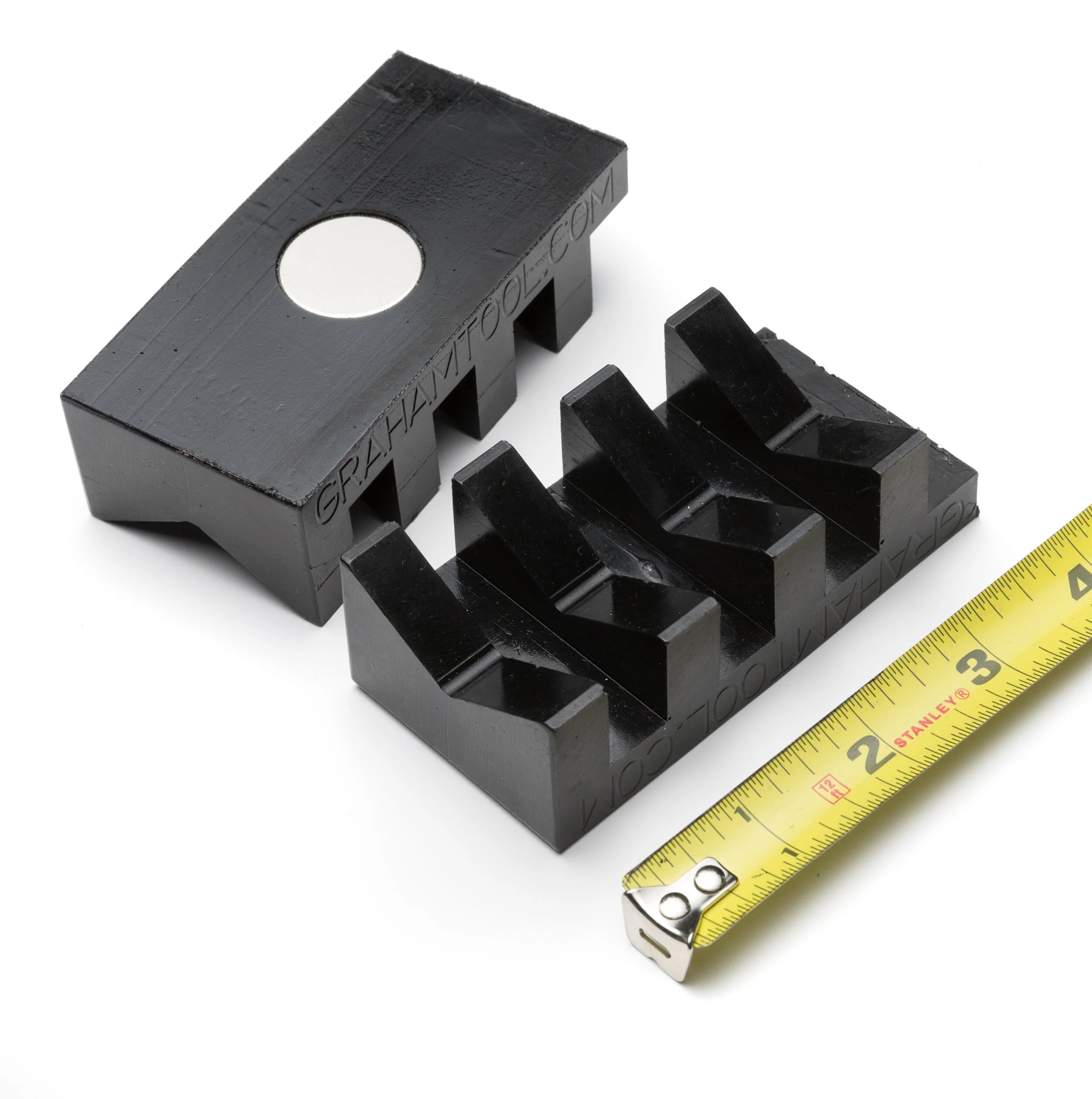

Simple to use. Step 1. Place tube in the vise v-block and cut to length with a tube cutter (tube cutter not included). Step 2. Deburr the I.D. and O.D. Step 3. Oil tube. Step 4. Install the beading tool, tighten the knob, and start the bead. Progressively tighten the knob with each 360 degree rotation. The medium vise v-blocks are designed to work with most bench vises. Securely holds round shapes from 3/8"(9.525mm) to 2"(50.8mm). Made in the USA from hand-poured semi-soft polyurethane. Powerful neodymium magnets hold the v-blocks to a vise. Dimensions are the following: Length: 4.0" (102mm), Width: 1.5" (38mm), Height: 2.0" (51mm).
